S7000 CD/P4ADGA 10*26*16 mm Super Precision High Capacity Two Single Row Angular Contact Ball Bearing High Speed
The S7000 CD/P4ADGA bearing,bore diameter is 10 mm, outside diameter is 26 mm,width is 16 mm,featuring precise dimensions, high static load capacity, P4A precision grade, delivers superior performance and reliability for applications requiring high rotational accuracy and stability.
| Part Number | S7000 CD/P4ADGA |
| Bearing Type | Angular Contact |
| Measurement Unit | Metric |
| Dimensions | Inner Bore Diameter (d) | 10 mm |
| Inner Bore Diameter Tolerance | -0.004mm to 0 |
| Outer Bore Diameter (D) | 26 mm |
| Outer Bore Diameter Tolerance | -0.004mm to 0 |
| Width (B) | 16 mm (2*8mm) |
| Width Tolerance | -0.2mm to 0 |
| Specifications | Contact Angle | 15° (25°,40° Available) |
| Material | Chrome Steel |
| Cage Material | Phenolic |
| Number of Rows | 2 (2* Single Row) |
| Seal Type | Seal on both side |
| Temperature Range | -30°C to 150°C |
| Lubrication | Grease |
| Tolerance Class | P4A better than P4 |
| Weight | 0.038 kg |
| Matched Arrangement | Universal Matching |
| Universal Matching Bearing | Yes,back-to-back (<>),face-to-face (><) or tandem (>>) DB,DF,DT 2 bearings |
| Preload | EL/Extra Light/Class A |
| Load and Speed | Dynamic Radial Load | 6630 N |
| Static Radial Load | 3250 N |
| Reference Speed For Grease (r/min) | 140,000 rpm |
| Limiting Speed For Oil(r/min) | 185,000 rpm |
What's the Performance Features of S7000 CD/P4ADGA Bearing?
The S7000 CD/P4ADGA bearing, engineered for high-performance applications, features P4A grade precision, an angular contact design for handling significant radial and axial loads. Optimized for high-speed operation with minimal vibration, it offers smooth, quiet performance and is constructed from premium materials to ensure durability and longevity. This bearing maintains high precision during operation, making it ideal for critical applications in machine tools, automation, aerospace, medical devices, and other industries requiring exceptional accuracy and reliability.
What's the Applications of the S7000 CD/P4ADGA Bearing?
The S7000 CD/P4ADGA bearing, a super-precision angular contact ball bearing,renowned for its high rotational accuracy and low friction, is essential in applications ranging from machine tool spindles and hydraulic automatic lathes to concrete vibrators, engines, power cabinets, and disk feeders. Its ability to handle high speeds, precise positioning, heavy loads, and harsh conditions makes it ideal for ensuring stable and accurate operation in various industrial equipment. Additionally, its use extends to fields like aerospace, robotics, and precision instruments, where high precision, rigidity, and durability are paramount. This versatile bearing offers reliable performance across multiple industries, thanks to its superior design and manufacturing standards.
| CERTIFICATE | RoHS & REACH, IATF16949:2016 |
| Feature | High Speed and Stiffness,High Running Accuracy,High Load Carrying Capacity |
| Service | OEM&ODM Customized Services |
| Samples | Please Contact Us |
| Service | Online Support,Professional Service |
| Size | Standard,For custom sizes ,please contact us |
| Factory Manufacturer | Yes |
|
|

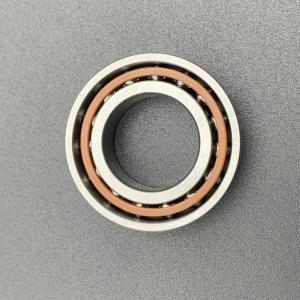

S7000 CD/P4ADGA Super Precision High Capacity Sealed Angular Contact Ball Bearing Images
|
