S71901 ACDGA/P4A 12*24*6 mm Super Precision High Capacity Single Row Angular Contact Ball Bearing High Speed
Super-precision, high-capacity, universally matchable single row angular contact ball bearing with seals
The S71901 ACDGA/P4A bearing,bore diameter is 12 mm, outside diameter is 24 mm,width is 6 mm,featuring precise dimensions, high static load capacity, P4A precision grade, delivers superior performance and reliability for applications requiring high rotational accuracy and stability.
| Part Number | S71901 ACDGA/P4A |
| Bearing Type | Angular Contact |
| Measurement Unit | Metric |
| Dimensions | Inner Bore Diameter (d) | 12 mm |
| Inner Bore Diameter Tolerance | -0.004mm to 0 |
| Outer Bore Diameter (D) | 24 mm |
| Outer Bore Diameter Tolerance | -0.004mm to 0 |
| Width (B) | 6 mm |
| Width Tolerance | -0.2mm to 0 |
| Specifications | Contact Angle | 25° (15°,40° Available) |
| Material | Chrome Steel |
| Cage Material | Phenolic |
| Number of Rows | 1 Single Row |
| Seal Type | Seal on both sides |
| Temperature Range | -30°C to 150°C |
| Lubrication | Grease |
| Tolerance Class | P4A better than P4 (ABEC-7) |
| Weight | 0.01 kg |
| Matched Arrangement | No |
| Universal Matching Bearing | Yes,back-to-back (<>),face-to-face (><) or tandem (>>) DB,DF,DT 2 bearings |
| Preload | EL/Extra Light/Class A |
| Load and Speed | Dynamic Radial Load | 2550 N |
| Static Radial Load | 1180 N |
| Reference Speed For Grease (r/min) | 63,000 rpm |
| Limiting Speed For Oil(r/min) | 95,000 rpm |
What's the Performance Features of S71901 ACDGA/P4A Bearing?
The S71901 ACDGA/P4A angular contact ball bearing is engineered for high-precision and high-performance applications, featuring very tight tolerances suitable for precise machinery, the ability to handle both radial and axial loads simultaneously, high-speed operation with stability, low torque and friction for energy efficiency, enhanced rigidity for accuracy under heavy loads, durability with extended service life, effective performance across a wide temperature range.
What's the Applications of the S71901 ACDGA/P4A Bearing?
The S71901 ACDGA/P4A bearing, is a high-precision angular contact ball bearing with significant load-carrying capacity, is critical in applications requiring superior rotational accuracy. It enhances the performance and longevity of precision machinery by reducing friction and wear, ensures efficient operation in automation equipment, meets stringent reliability standards in aerospace under extreme conditions, supports precise operations in medical devices like CT and MRI machines, facilitates high-precision processes in semiconductor manufacturing, and ensures accuracy in robotics and measurement instruments. This bearing plays an indispensable role across various high-tech industries, particularly where high precision and stability are paramount.
| CERTIFICATE | RoHS & REACH, IATF16949:2016 |
| Feature | High Speed and Stiffness,High Running Accuracy,High Load Carrying Capacity |
| Service | OEM&ODM Customized Services |
| Samples | Please Contact Us |
| Service | Online Support,Professional Service |
| Size | Standard,For custom sizes ,please contact us |
| Factory Manufacturer | Yes |
|
|

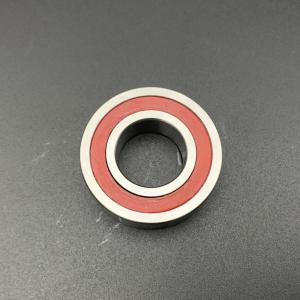

S71901 ACDGA/P4A Super Precision Single Row Angular Contact Ball Bearing 7901 2RZ Images
|
